SF3.96*1.02*1.98 Honeywell 104MG3 rare earth bar magnets
Product Name: SF3.96*1.02*1.98 Honeywell 104MG3 rare earth bar magnets
Product Part No.:SF3.96*1.02*1.98
Customer Part No. : 104MG3
Product type : Sensor Magnets/Honeywell
Specifications:
Material type: SmCo Magnets
Grade: SM18
Magnet Size: L 3.96 mm x W1.02 mm x H1.98 mm
Magnet Shape: Block, Bar, Rectangle
Magnetization: Cross 1.02mm
Residual Magnetic Flux Density (Br): 0.85 kGs
Energy Density (BH)max: 517-19 MGOe
Coercivity Force (Hcb): ≥ 7.8 kOe
Intrinsic Coercivity Force (Hcj): ≥ 17 kOe
Maximum Operation Temperature: 250°C
Origin:Shenzhen, China
Original Manufacturer: Super Magnet Co.,Ltd
Applications: Sensor, Encode, Reed switch ,DC Motors, generator ,Package, ,Holding systems,Loudspeakers,Microphones and much more.

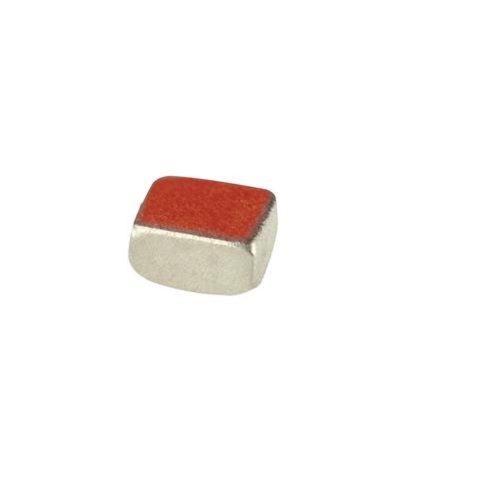

Products Image :
