Casting AlNiCo magnets

Details
Gallery

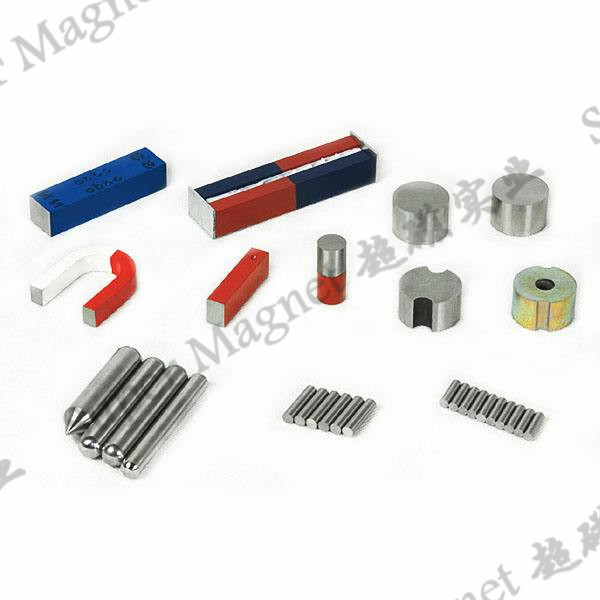

Alnico magnets exhibit excellent temperature stability, high residual induction, and relatively high energies. Alnico is composed primarily of alloys of Aluminum, Nickel, and Cobalt. Cast AlNiCo magnets may be manufactured in complex shapes, such as horseshoes, not possible with other magnet materials. The most commonly used cast Alnico magnet is Cast Alnico 5.

Alnico has a low coercive force, and is easily demagnetized if not handled with care. For optimum performance of Alnico 5, the magnetic length should be approximately 5 times the pole diameter or equivalent diameter.

Application field
The AlNiCo magnet application newly developed hall-effect and MR-based automotive electronic sensors. The traditional applications include magneto, TWT amplifiers, actuators, and instrument.

Magnetic Properties

Grade	Remanence(Br)		Coercivity Force(Hcb)		Max. Energy Product(BHmax)		Maximum Operating Temp.	US Standard	IEC Standard
Grade	mT	kGs	kA/m	kOe	kJ/m3	MGOe	Maximum Operating Temp.	US Standard	IEC Standard
*LN10	650	6.5	42	0.53	10	1.2	450 ℃	Alnico 3	Alnico 9/3
*LNG11	720	7.2	37	0.48	11.2	1.4	450 ℃	Alnico 1	Alnico 8/4
*LNG13	700	7	50	0.62	13	1.6	450 ℃	Alnico 2	Alnico 12/6
LNG16	800	8	53	0.66	16	2	525 ℃	[Alnico 4]	/
LNG34	1180	11.8	44	0.55	35	4.3	525 ℃	[Alnico5C]	/
LNG37	1180	11.8	48	0.60	37	4.65	525 ℃	[Alnico5C]	Alnico 37/5
LNG40	1220	12.2	48	0.60	40	5	525 ℃	Alnico 5	/
LNG44	1220	12.2	52	0.65	44	5.5	525 ℃	Alnico 5	Alnico 44/5
LNG52	1250	12.5	55	0.69	52	6.5	525 ℃	Alnico5DG	Alnico 52/6
LNG60	1300	13	56	0.70	60	7.5	525 ℃	Alnico 5~7	/
LNGT18	580	5.8	90	1.13	18	2.26	550 ℃	[Alnico 8]	Alnico 17/9
LNGT28	1050	10.5	56	0.70	28	3.5	550 ℃	Alnico 6	Alnico 26/6
LNGT32	800	8	104	1.30	34	4.25	550 ℃	Alnico 8	Alnico 38/11
LNGT38	820	8.2	110	1.38	38	4.75	550 ℃	Alnico 8	Alnico 38/11
LNGT44	880	8.8	120	1.50	44	5.5	550 ℃	Alnico 8	/
LNGT60	900	9	110	1.38	60	7.5	550 ℃	Alnico 8	Alnico 60/11
LNGT72	1050	10.5	112	1.41	72	9	550 ℃	Alnico 9	/
LNGT36J	700	7	140	1.75	36	4.5	550 ℃	Alnico8HC	Alnico 36/15
