NF1x1x2-N45 micro neodymium magnets
You are here: Products / Sintered NdFeB / Block Magnets
Detailed Product Description:
Product Name:NF1*1*2mm Sintered NdFeB magnets Grade N45
Product Part No.:NF1*1*2-N45
Specifications:
Material: Neodymium magnets N45
Coating : NICUNI
Magnet Size: L 1mm ,W1mm, height 2mm
Magnet Shape: Block, cube ,square
Magnetization: Axial 1mm
Residual Magnetic Flux Density (Br): 13.2-13.8 kGs
Energy Density (BH)max: 43-46 MGOe
Coercivity Force (Hcb): ≥ 11.6 kOe
Intrinsic Coercivity Force (Hcj): ≥ 12 kOe
Maximum Operation Temperature: 80 °C
Origin:Shenzhen, China
Original Manufacturer:Super Magnet Co.,Ltd
Applications: Motors,package,Sensors,Holding systems,Loudspeakers,microphones and much more.

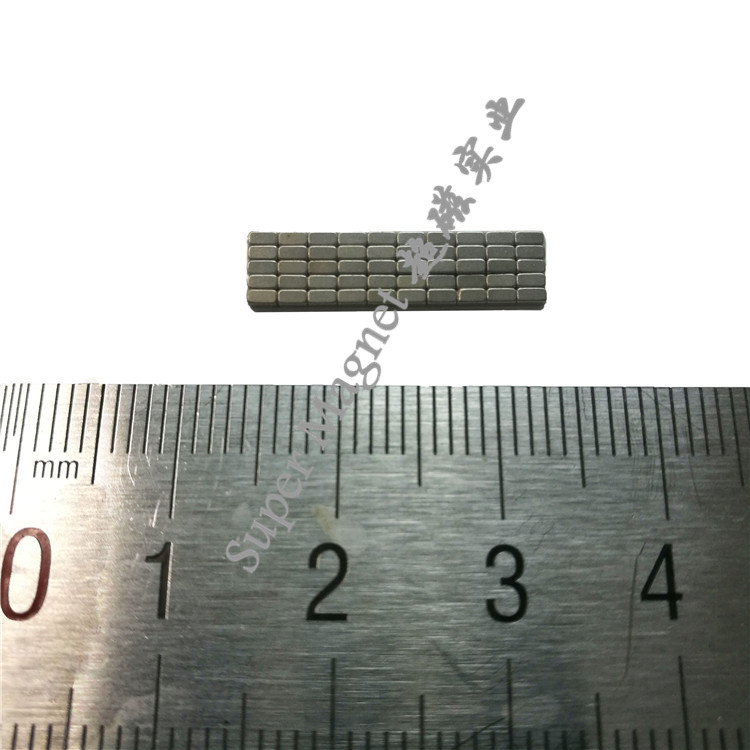

Products Image :
