NRD17*4.2*2mm Sintered NdFeB magnets countersunk N42

You are here:  Products / Sintered NdFeB / Ring Magnets


Detailed Product Description:

 Product Name: NRD17*4.2*2mm  Sintered NdFeB magnets countersunk N42

Product Part No.: NRD17xd4.2x2-N42

Specifications:

Material: Sintered NdFeB magnet N42

Coating : NICUNI

Magnet Size: OD17 ,ID 4.2mm, Height 2mm with countersunk hole

Magnet Shape:Tube,Disc with countersunk hole, Ring Magnets

Magnetization: Axial

Residual Magnetic Flux Density (Br): 12.8-13.2 kGs

Energy Density (BH)max: 40-43 MGOe

Coercivity Force (Hcb): ≥  11.5 kOe

Intrinsic Coercivity Force (Hcj): ≥ 12 kOe

Maximum Operation Temperature: 80 °C


Origin:Shenzhen, China

Original Manufacturer:Super Magnet Co.,Ltd

Applications: Motors,package,Sensors,Holding systems,Loudspeakers,microphones and much more.

Remark:We have some stock for this product, please check with us for urgent requirement .


Products Image :

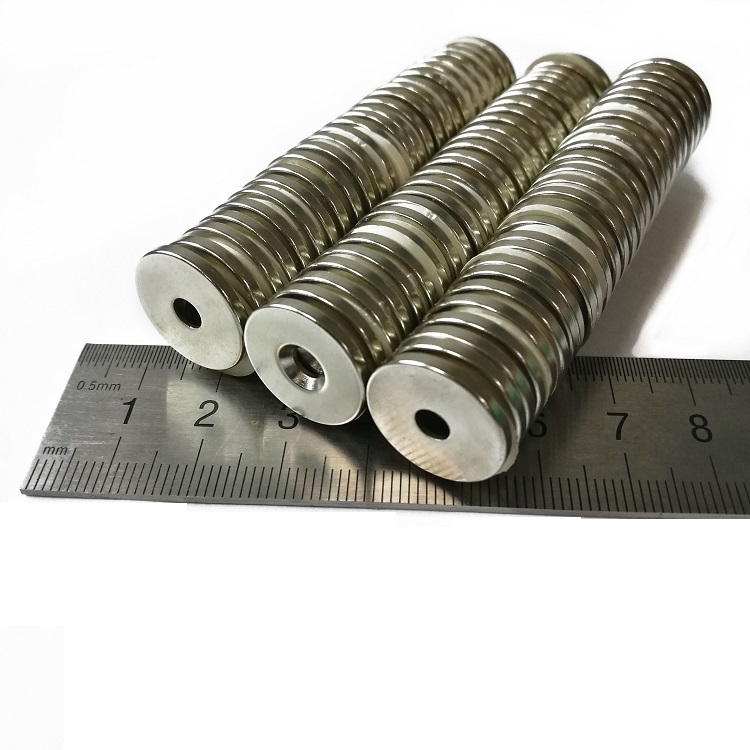

NR17*4.2*2mm  Sintered NdFeB magnets countersunk N42
