2 track Magnetic Target for Magnetic Encoder

You are here: Products / Sensor Magnets / Encoder Magnets

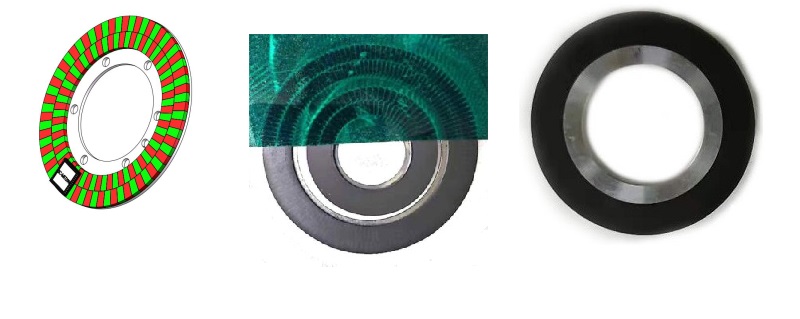

2 track Magnetic Target or Encoder magnets


2 track Magnetic Target ( Nonius Magnet Ring ) are used as the magnet target of absolute magnetic encoder. The magnetic encoder calculates the absolute position through the difference between two nonius magnetic signals. One track provides coarse position data and the other provides phase adjustment data. By combining the information of the torsion track, the encoder can significantly improve resolution and accuracy, while enhancing anti-interference capabilities and effectively reducing the impact of magnetic fields on position detection.


Typical Products :

Magnetic Target Part No. Product Dimension Master Track Nonius Track Pole Pitch Matching IC
HUT128A32 15-29-1.1 OD29-ID15-H1.1mm
 32 pole pairs
 31 pole pairs
 1.28mm iC-MU128
HUT128A64 38-56-1.1
 OD56-ID38-H1.1mm
 64 pole pairs
 63 pole pairs
 1.28mm
 iC-MU128
HUT150A32 18-34-1.1
 OD34-ID18-H1.1mm
 32 pole pairs
 31 pole pairs
 1.50mm iC-MU150
HUT150A64 47.4-64-1.1
 OD64-ID47.4-H1.1mm
 64 pole pairs
 63 pole pairs
 1.50mm
 iC-MU150
HUT200A32 31.5-49-2
 OD49-ID31.5-H2.0mm
 32 pole pairs
 31 pole pairs
 2.0mm
 iC-MU200
HUT200A32 44.5-25-1.4
 OD44.5-ID25-H1.4mm
 32 pole pairs
 31 pole pairs
 2.0mm
 iC-MU200
HUT200A64 62-84-1.1
 OD84-ID62-H1.1mm
 64 pole pairs
 63 pole pairs
 2.0mm
 iC-MU200

Support Customized Design

We support customization to meet different clients’ requirements for magnetization methods and installation:

  • The number of magnetic pole pairs and magnetization patterns.
  • The inner diameter and outer diameter  of magnetic target


Main Application Fields

- Industrial Motors: Used in servo motors and stepper motors for real-time speed and position feedback, ensuring stable operation of CNC machines and conveyor belts.
- Automotive Electronics: Integrated into electric vehicle (EV) drive motors, ABS systems, and steering systems to monitor rotational speed and enhance driving safety.
- Robotics: Applied in robotic joints and arms to achieve precise motion control, supporting tasks like assembly line positioning and surgical robot operations.
- Consumer Electronics: Found in drone motors, 3D printer extruders, and camera gimbals for smooth, accurate motion adjustment.
